AP6800
NEO 3 Product
Unattended Payment Solutions
All-in-One PCI 6.X SRED Smart Payment Terminal with Android Platform
Unattended Payment Solutions
As our first Android OS-based terminal, the AP6800 not only simplifies payment transactions but also enriches customer interactions with its intuitive interface and multimedia capabilities. It is an ideal solution for a variety of self-service environments, including vending machines, parking payment kiosks, and self-order kiosks.
- Advanced Android OS: The AP6800 runs on Android OS 13 and features an industrial-grade chip, ensuring the terminal stays up to date with the latest features and security enhancements without a hardware change.
- App Hosting Ability: The AP6800 can host various applications designed to streamline the order-taking and payment processes, allowing businesses to offer a more efficient and seamless checkout experience.
- Touchscreen with PIN-on-Glass: Equipped with a responsive 5-inch touchscreen, the AP6800 supports PIN-on-Glass, offering a secure and user-friendly interface for payment transactions.
- External Display Support: This versatile terminal can drive a second screen with up to 4K resolution, perfect for displaying advertisements and playing videos, turning your payment point into a dynamic marketing tool.
- Unattended Payment Versatility: Designed specifically for a wide range of payment applications, the AP6800 has enhanced IP65 and IK08 ratings, capable of operating in the most challenging unattended environments.
Connectivity
WiFi, Bluetooth, LTE (optional)
Operating System
Android OS 13 (upgradeable)
Operating Temperatures
-30°C to +55°C
Storage Temperatures
-30°C to +70°C
Key Features
- PCI 6.X SRED with PIN on glass
- Common EMV L2 Kernel
- Contactless Certification Family
- Integrated Camera, Built-In Microphone & Speaker
- Bluetooth 4.0 BLE (Bluetooth Low Energy)
- Accepts CTLS/NFC, EMV Chip, MSR, Mobile Wallets (NFC, QR Codes)
Tell Me More
"*" indicates required fields
VP6825
NEO 3 Product
Unattended Payment Solutions
PCI PTS 6.X Certified Unattended Payment Device with PIN on Glass
PCI PTS 6.X Certified Unattended Payment Device with PIN on Glass
Unattended Payment Solutions
For vending machines, parking facilities, gas stations, and all the other outdoor self-service payment stations, the VP6825 is an ideal solution to facilitate payment transactions.
- All-in-one payment device: Accepts payments from chip cards, NFC cards, mobile wallets, and magstripe cards. PCI PTS 6.X certified.
- Ready for loyalty programs: Supports Apple and Google’s loyalty/rewards value-adds of Apple VAS and Google Smart Tap.
- Improve customer engagement: The 4.3-inch digital touchscreen is ideal for displaying video advertisements and payment instructions.
- Ruggedized design: Water-resistant design with a wide operating temperature range.
Interfaces
Bluetooth 5.0 BLE, Ethernet, LTE (Optional), RS232, USB-C, WiFi
Operating Temperatures
-20°C to 70°C (-4°F to 158°F)
Storage Temperatures
-30°C to 80°C (-22°F to 176°F)
Dimensions
(Total Size) 132 mm x 88 mm x 27.5 mm
(External Size) 132 mm x 88 mm x 43 mm
Key Features
- PCI 6.X
- EMV L1 & L2
- ISO 7816
- USB-C, mini HDMI & RS232
- Bluetooth 5.0
- 4 SAMs
Tell Me More
"*" indicates required fields
Kiosk V
NEO 3 Product
Unattended Payment Solutions
A robust, secure, standalone contactless
reader ideal for ATMs and self-service
applications.
Unattended Payment Solutions
It’s time to speed up your ATMs and payment kiosks with fast and secure contactless transactions. Upgrade your payment systems by processing touchless payments with Kiosk V, our next-generation NFC payment reader.
- Latest contactless kernels for AMEX, Discover, MasterCard, Visa, Interac, and many more;
- PCI PTS 6.X certified (SRED version);
- Supports mobile payments including Apple Pay and Google Pay as well as their loyalty/rewards programs;
- Ruggedized, weather-resistant device designed for outdoor use.
Connectivity
BLE, RS232, USB & UART
Operating Temperatures
-30°C to 70°C (-22°F to 158°F)
Storage Temperatures
-30°C to 85°C (-22°F to 185°F) (SRED Version)
-40°C to 85°C (-40°F to 185°F) (Non-SRED Version)
Dimensions
75 mm x 60 mm x 11.2 mm
Key Features
- Small form factor
- Latest EMV certifications
- Same mounting as Kiosk III
- Port powered
- TDES/AES encryption
- Remote key injection
Tell Me More
"*" indicates required fields
VP7200
NEO 3 Product
Unattended Payment Solutions
A compact, powerful, and rugged NFC
contactless solution with QR scanner option.
Unattended Payment Solutions
Versatile and ruggedly built, the VP7200 contactless payment reader is ideal for parking and transport ticketing systems, and many other unattended payment scenarios. With PCI PTS 6.X and the latest EMV Contactless certification, the VP7200 will improve payment security as well as the user experience.
- Supports tap-to-pay with NFC-enabled debit/credit cards, as well as mobile wallets including Apple Pay and Google Pay.
- Supports MIFARE & CIPURSE/Calypso as well as mobile loyalty programs such as Apple VAS and Google Smart Tap.
- Powerful enough to run payment applications and drive a second screen to engage customers and facilitate the payment process.
- Supports Ethernet, USB-C and Cellular (optional).
- Equipped with a built-in camera for reading QR codes.
- Operates in a wide temperature range and IK 07 & IP 65 rated.
- Low power consumption.
Interfaces
BLE, Ethernet, RS232 & USB-C
Operating Temperatures
-30°C to 70°C (-22°F to 158°F)
(Max Change of 10°C per Hour)
Storage Temperatures
-40°C to 85°C (-40°F to 185°F) (non-condensing)
Dimensions
68 mm x 68 mm x 11.5 mm
Key Features
- Small form factor
- Latest EMV certifications
- PCI PTS 6.X
- Remote key injection
- 4 SAMs
- Low power consumption
Tell Me More
"*" indicates required fields

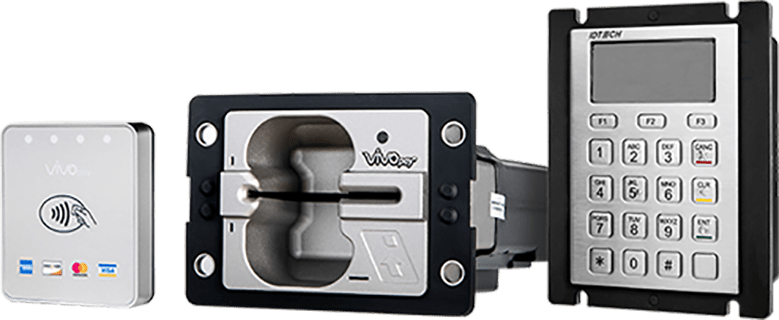

VP5300 Bundle with SmartPIN L80
Unattended Payment Solutions
Includes our VP5300, VP5300 NFC Antenna, and SmartPIN L80 products for unattended payment environments.
VP5300 Bundle
We provide an all-in-one payment solution with the VP5300 Bundle. Featuring the VP5300 chip-and-magstripe hybrid insert reader, the NFC Antenna, and the SmartPIN L80 PIN Entry Device, this bundle supports all payment methods, from cards to mobile wallets.
- Accept payments securely from magstripe/chip cards, NFC cards, and popular e-wallets, including Apple Pay and Google Pay.
- Weather-resistant devices ready for challenging outdoor environments and extreme temperatures.
- Equipped with a compact designed PIN pad and user-friendly tactile keys.
VP5300 Bundle
We provide an all-in-one payment solution with the VP5300 Bundle. Featuring the VP5300 chip-and-magstripe hybrid insert reader, the NFC Antenna, and the SmartPIN L80 PIN Entry Device, this bundle supports all payment methods, from cards to mobile wallets.
- Accept payments securely from magstripe/chip cards, NFC cards, and popular e-wallets, including Apple Pay and Google Pay.
- Weather-resistant devices ready for challenging outdoor environments and extreme temperatures.
- Equipped with a compact designed PIN pad and user-friendly tactile keys.
Featured Products
Key Features
- All-in-one secure payment acceptance
- Weather-resistant, rugged design
- Supports all major mobile wallets
- Secure design for unattended situations
- PCI Certified Remote Key Injection
- Can pair with L100 for Chip-PIN transactions
Tell Me More
"*" indicates required fields
VP5300M Bundle with SmartPIN L80
Unattended Payment Solutions
Includes our VP5300M, VP5300 NFC Antenna, and SmartPIN L80 products for unattended payment environments.
VP5300M Bundle
The VP5300M Bundle is an effective unattended payment solution for use in parking, transit, and ticketing payment situations.
It includes the world’s first PCI SRED certified MSR, EMV contact, and EMV contactless all-in-one secure motorized payment acceptance reader. The VP5300M Bundle is an excellent upgrade replacement to all existing unattended and motorized payment solutions.
VP5300M Bundle
The VP5300M Bundle is an effective unattended payment solution for use in parking, transit, and ticketing payment situations.
It includes the world’s first PCI SRED certified MSR, EMV contact, and EMV contactless all-in-one secure motorized payment acceptance reader. The VP5300M Bundle is an excellent upgrade replacement to all existing unattended and motorized payment solutions.
Featured Products
Key Features
- All-in-one secure motorized payment acceptance
- Weather resistant, rugged design
- Supports all major mobile wallets
- Secure design for unattended situations
- PCI Certified Remote Key Injection
- Can pair with L80 for Chip-PIN transactions
Tell Me More
"*" indicates required fields
SmartPIN L80
Unattended Payment Solutions
Compact PCI PTS 6.X SRED PIN Pad
Unattended Payment Solutions
The SmartPIN L80 is designed for unattended payment solutions where an encrypted Chip & PIN entry is required, including fuel dispensers, ticket vending machines, and parking kiosks.
- Supports online & offline PIN with AES & TDES encryption.
- Enables Chip & PIN transactions when paired with VP5300 or VP5300M.
- Applies a compact design and user-friendly tactile keys.
Unattended Payment Solutions
The SmartPIN L80 is designed for unattended payment solutions where an encrypted Chip & PIN entry is required, including fuel dispensers, ticket vending machines, and parking kiosks.
- Supports online & offline PIN with AES & TDES encryption.
- Enables Chip & PIN transactions when paired with VP5300 or VP5300M.
- Applies a compact design and user-friendly tactile keys.
Interfaces
USB, RS232
Operating Temperatures
-20°C to 70°C (-4°F to 158°F)
Storage Temperatures
-40°C to 80°C (-40°F to 176°F)
Dimensions
93.5 mm × 60 mm × 26.4 mm
Key Features
- Compact Footprint
- PCI PTS 6.X
- User-Friendly Tactile Keys
- Extensive Temperature Range
- Low Power Consumption
- AES & TDES Encryption
UV Resistant
Impact Tested
Water Resistant
Sunlight Readability
Tell Me More
"*" indicates required fields
VP5300M Bundle
Unattended Payment Solutions
Includes our VP5300M, VP5300 NFC Antenna, and SmartPIN L100 products for unattended payment environments.
Unattended Payment Solutions
The VP5300M Bundle is an effective unattended payment solution for use in parking, transit, and ticketing payment situations.
It includes the world’s first PCI SRED certified MSR, EMV contact, and EMV contactless all-in-one secure motorized payment acceptance reader. The VP5300M Bundle is an excellent upgrade replacement to all existing unattended and motorized payment solutions.
Unattended Payment Solutions
The VP5300M Bundle is an effective unattended payment solution for use in parking, transit, and ticketing payment situations.
It includes the world’s first PCI SRED certified MSR, EMV contact, and EMV contactless all-in-one secure motorized payment acceptance reader. The VP5300M Bundle is an excellent upgrade replacement to all existing unattended and motorized payment solutions.
Featured Products
Key Features
- All-in-one secure motorized payment acceptance
- Weather resistant, rugged design
- Supports all major mobile wallets
- Secure design for unattended situations
- PCI Certified Remote Key Injection
- Can pair with L100 for Chip-PIN transactions
Tell Me More
"*" indicates required fields
VP5300M
Unattended Payment Solutions
Secure Motorized Payment Reader
Unattended Payment Solutions
VP5300M is the world’s first PCI SRED certified MSR, EMV contact, and EMV contactless all-in-one secure motorized payment acceptance reader.
Specifically designed as a direct drop-in replacement of older none PCI certified motorized readers, VP5300M easily fits into the same space taken by the vast majority of existing motorized readers in the field, making the VP5300M a perfect upgrade replacement to all existing unattended and motorized payment solutions currently deployed in great numbers around the world.
Unattended Payment Solutions
VP5300M is the world’s first PCI SRED certified MSR, EMV contact, and EMV contactless all-in-one secure motorized payment acceptance reader.
Specifically designed as a direct drop-in replacement of older none PCI certified motorized readers, VP5300M easily fits into the same space taken by the vast majority of existing motorized readers in the field, making the VP5300M a perfect upgrade replacement to all existing unattended and motorized payment solutions currently deployed in great numbers around the world.
Interfaces
RS232 / USB HID / UART / Ethernet
Operating Temperatures
0°C to 50°C (32°F to 122°F)
Storage Temperatures
-20°C to 70°C (-4°F to 158°F)
Dimensions
97 mm x 167 mm x 43 mm
Key Features
- Dual Head MSR
- EMV Contact L1/L2
- Built-in Application Controller with 32MB Flash Memory. 16 MB RAM
- Optional ID TECH SmartPIN L80 PCI 5.x PIN Pad
- Optional Externally Mounted SAM Slot Board
- RS232 / USB HID / UART / Ethernet
Tell Me More
"*" indicates required fields
Zeus
Unattended Payment Solutions
Outdoor Touchscreen Computer
Unattended Payment Solutions
Designed for self-ordering kiosks, the Zeus all-in-one touchscreen computer is ideal for quick-service restaurants, airports, gas stations, and other unattended systems.
- Delivers excellent performance thanks to a 2.16 GHz Intel Celeron Processor N2807, 2GB of RAM, and a 64GB solid-state drive.
- Infrared touch technology supports operation by virtually any physical touch, whether a finger, a stylus, or a gloved hand.
- A built-in webcam offers additional opportunities for customer interaction.
- Comes with various connectivity options, such as Dual-Band WiFi, LAN, USB, RS232, and Bluetooth.
Unattended Payment Solutions
ID TECH’s Zeus is an outdoor all-in-one touchscreen computer with a 2.16 GHz Intel Celeron Processor N2807, 2GB of RAM, and a 64GB solid-state drive.
The 1920×1080 resolution touchscreen uses infrared technology to support operation by virtually any type of physical touch, whether it is a finger, a stylus, or even a gloved hand, and the built-in webcam offers additional opportunities for customer interaction. With an array of different connectivity options such as Dual-Band WiFi, LAN, USB, RS232, and Bluetooth, the Zeus Digital Display is the ideal solution for a variety of applications.
Power
100-240V A< 50-60 Hz
Storage
64GB Solid-State Drive
Operating Temperatures
-40°C to 60°C (-40°F to 140°F) with built-in heater
Dimensions
574 mm x 83 mm x 357 mm
Key Features
- Windows OS
- Infrared Touch
- IP65
- Direct sunlight readable
- Wide temperature range
- Optional NFC antenna for contactless payments
Tell Me More
