VP6300

PCI 5.x certified outdoor payment peripheral

Request Information    Get Support



Download Datasheet

EMV L1 and L2 certified

PCI 5.X SRED certified option

Windows & Android SDK available

Supports TDES/AES with DUKPT encryption

Apple Pay, Samsung Pay, Android Pay Apple VAS and Google Smarttap 2.1 supported

Interac, CUP, JCB, and Felica supported

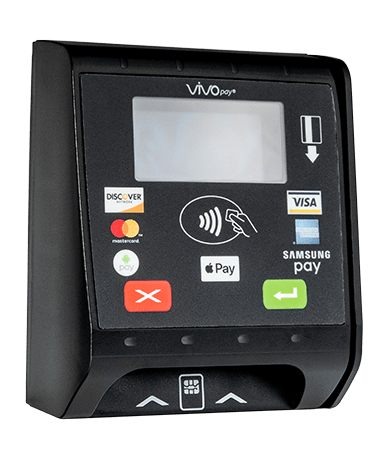

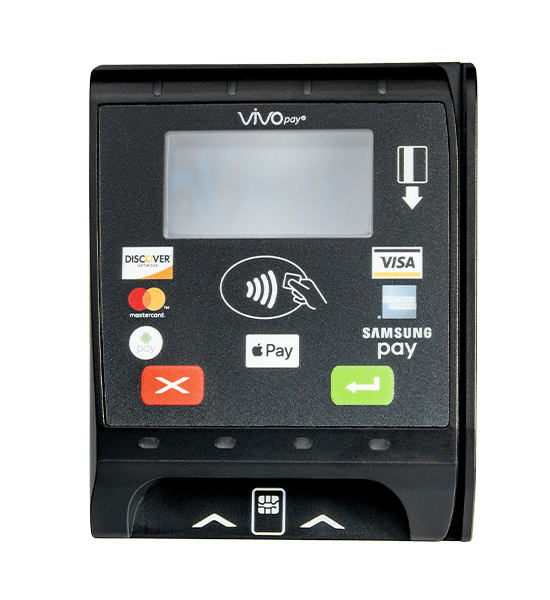

The VP6300 is the ideal solution for vending machine operators looking for a secure cashless solution supporting magnetic stripe, EMV Chip and contactless cards, and NFC mobile payments including Apple Pay, Android Pay, Samsung Pay and popular loyalty programs including Apple VAS and Google SmartTap 2.1.



Download Datasheet

Specifications

Electrical Interfaces:

Ethernet, RS-232 & USB

Environmental:

Operating Temperature: -4°F to 158°F (-20°C to 70°C)
Storage Temperature: -22°F to 185°F (-30°C to 85°C)
Humidity: 90% relative humidity non-condensing

Reliability:

Operating Life: MagStripe Reader: 1,000,000 MSR swipes, 500,000 EMV inserts

Warranty:

One year, parts and labor

Mechanical:

(H)x(W)x(L): 4.25” (108 mm) x 3.46” (85 mm) x 2.17” (55 mm)
LCD Color Display: 128×64

Let’s discuss the VP6300

Contact Sales

View Other Unattended Payment Products
