SmartPIN L120
Your PCI PTS 6.X Certified Upgrade Path from L100 to L120
SmartPIN L120

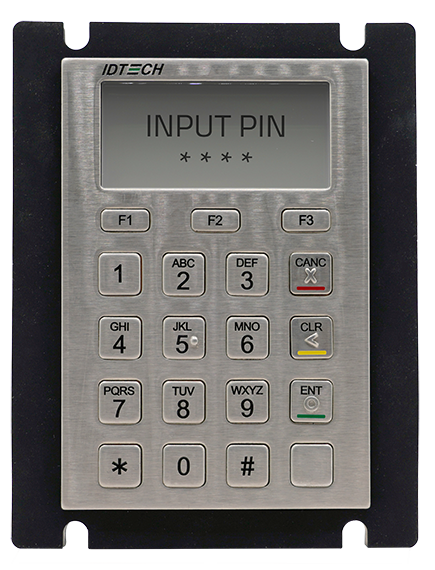

Introducing the SmartPIN L120, a PCI PTS 6.X certified PIN pad that raises the bar in unattended payment security. Designed for payment solutions requiring secure Chip & PIN entry, the SmartPIN L120 can be paired with the VP5300 card reader, enabling full Chip-PIN (online/offline) and MSR-Debit transactions. It is an ideal solution for gas stations, kiosks, ATMs, vending machines, and transportation systems.
- Reliable and ruggedized for harsh environments.
- When paired with VP5300, it supports all PIN-based transactions (Chip-PIN online/offline and MSR-Debit).
- Highest IP and IK ratings for unattended applications.
- Affordable, globally ready solution with easy integration.
- Supports both payment and non-payment entry functions (e.g., zip code entry).
Download Datasheet
Interface
RS232 & USB
Power
5VDC; Power consumption <200mA
Operating Temperatures
-25°C to 70°C (-13°F to 158°F)
Storage Temperatures
-30°C to 80°C (-22°F to 176°F)
Key Durability
Minimum 2 Million Key Presses
Key Features
- PCI PTS 6.X; FCC/CE; ADA Compliant
- ESD Immunity: ±6kV Contact & ±12kV Air Discharge
- MTBF: 120,000 Power-On Hours Calculated
- Tamper detection
- TDES/DUKPT and AES/DUKPT Key Management
- Works with ID TECH’s universal SDK
