VP3300 OEM

EMV 3-in-1 OEM Module

Request Information    Get Support



Get Started



Download Datasheet

Home > Products > OEM Payments > VP3300 OEM

USB / Audio Jack / Bluetooth Interface Available

EMV L1 / L2

ID TECH Common L2 Kernel

TDES / AES / RSA Encryption

Bluetooth 4.0 Low Energy

iOS, Android and Windows

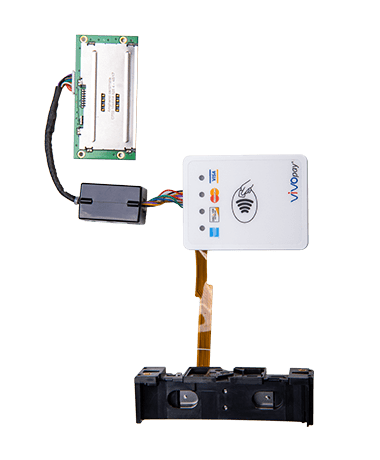

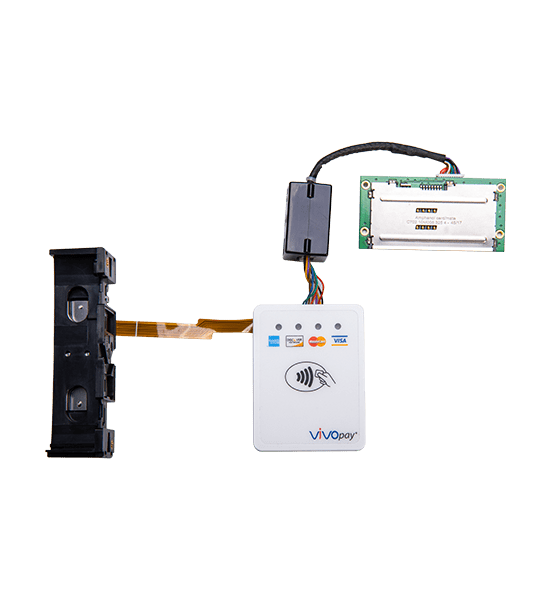

3-in-1 MagStripe, EMV Contact and EMV Contactless Reader



Download Datasheet

Specifications

Electrical:

Power Requirements: 5V USB powered

Interface:

USB (Standard)
Bluetooth 4.0 Low Energy (Optional)
Audio Jack (Optional)

Reliability:

Operating Life: MSR: 300,000 swipes minimum
Smart Card Reader: 80,000 card cyles min.
Warranty: One year, parts and labor

Environmental:

Operating Temperature: 0°C to 55°C (32°F to 131°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: Max 95% non-condensing

Mechanical:

Dimension (H)x(L)x(W): 2.52 inches (64 mm) x 1.93 inches (49 mm) x 0.57 inches (14.5 mm) excluding Audio Jack
Bluetooth Version: 2.52 inches (64 mm) x 1.93 inches (49 mm) x 0.75 inches (19mm)
Media Thickness: 0.76mm ± 0.08mm minimum 0.89 max.

Integrations:

• MasterCard PayPass
• Visa VCPS and QuickChip
• M/Chip Fast from MasterCard
• American Express ExpressPay
• Discover DPAS
• Apple Pay, Google Pay, Samsung Pay
• Apple VAS, Google SmartTap 2.1
• Sony FeliCa M
• TDES, AES DUKPT
• Remote key injection
